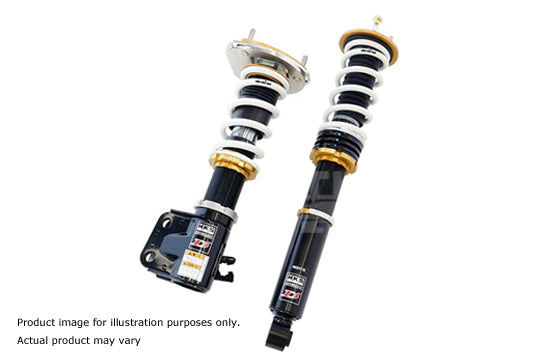

OUTLET/UN-USED HKS HIPERMAX MAX IV GT Spec-A - BRZ ZC6 86 ZN6

*Compatibility is from the maker for JDM cars only.

Compatibility:
Subaru BRZ ZC6 (2012-2019)
Toyota 86 ZN6 (2012-2021)

Brand:
HKS

Manufacturer Part#:
80230-AF012V

Stock#:
213131986

Specifications:
Version: GT Spec-A
Adjustability: 30 way
Spring Rate (N/mm (kgf/mm)):
-Front: 39+19(4+2)
-Rear: 39+19(4+2)
Upper Mount:
-Front: Spherical bearing
-Rear: Rubber
Helper Spring (Spring Rate N/mm):
- Front: N/A
- Rear: Yes (19.8N/mm)
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Shock Layout:
- Front: Inverted
- Rear: Normal
Adjustable Ride Height (mm):
- Front: 671~610
- Rear: 671~626
Adjustable Ride Height (Recommended Range):
- Front: 671~629
- Rear: 671~626
Free Height (mm):
- Front: 200
- Rear: 170
Damping force (Rebound/Damping)N (piston speed 0.1m/sec):
- Front: 400/300
- Rear: 350/350
Remaining damper stroke (Rebound/Damping) (mm)
Load: -25
Max High: 0
Minimum Low: -61
